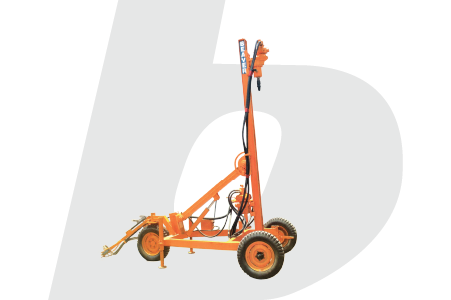

WAGON DRILL BEAVER 120 top drive Pneumatic drill rig capable of drilling hard rock by DTH method, to depth of 125 feet. Under favorable drilling condition. Detailed specification as follows.
| S.No | Product | Description |
|---|---|---|
| Capacity : Drilling Capacity | Hole Diameter 4 1⁄2” Max. Depth 125 feet’s | |
| Types of Drilling | DTH Method | |
| Prime Mover | Pneumatic / Hydraulic power pack | |
| Mast | Suitable to handle 5 feet. drill rods | |
| Centralizer opening | 270 mm | |
| Pull up force | 2,200 Kg | |
| Pull down Force | 4,500 kgs | |
| Pull up speed | 15 Mts/ Min | |
| Propulsion Speed | 0 to 1.5 Kmph | |
| Maximum Torque | 1125 Nm | |
| Height of mast Raised | 3600 mm | |
| Height of mast lowered | 900 mm | |
| Mast internal swivel | ±15 ℴ | |
| Width | 1800 mm |
