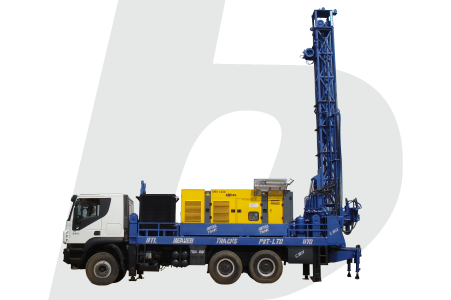

BEAVER BTHR-500 Model, Truck Mounted Hydraulically Operated Water Well Drilling Rig can capable of drilling from 6” to 10” Dia. Bore Holes in hard rock by DTH method, upto 17½” Bore Holes in Unconsolidated / alluvial formations using water / foam flush by Rotary method & Unconsolidated / Gravel / Boundary Formations using ODEX tools up to a depth of 500 Meters (1650 Ft.) .
Under favorable Drilling Conditions. The hydraulic pumps shall be powered by either same truck engine through PTO or by a separate diesel drive deck engine. It is a two truck version drilling rig.
TECHNICAL SPECIFICATIONS
| S.No | Product | Description |
|---|---|---|
| Capacity of Drilling | 10” Drilling to a depth of 500 mtrs. (1640 feets) | |
| Prime mover OS the hydraulic Pumps | Truck Engine / Deck Engine of suitable capacity | |
| Hydraulic Pumps used | Radial Piston Pumps & Gear Pump | |
| Maximum operating pressure | 230 Bar | |
| Hydraulic oil tank capacity | 1000 Ltrs | |
| Mast Construction | Tubular structure | |
| Mast | Suitable to handle 20ft. pipes | |
| Centralizer opening | 20” | |
| Pull up force | 30000 kg | |
| Pull-down Force | 18630 kgs | |
| Pull-up Speed | 36Mts/ min | |
| Max. Torque in Series Circuit | 750 Kg-m @ 0-120 rpm | |
| Max. Torque in Parallel Circuit | 1500 Kg-m @ 0-60 rpm | |
| Hydraulic Jacks (Stabilizers) | 4 Nos. of Box Type Ø125x70x610 Stroke | |
| Break-out wrench (to open the drill joints) | Ø125x350 Stroke | |
| Water Injection Pump | 80 LPM @ 40 Bar | |
| Airline Lubricator capacity | 30 Ltrs. | |
| Max. Working pressure of the Lubricator | 4000 PSI | |
| Auxiliary Winch | 3500 Kgs | |
| Accessories / Optional attachments | Welding Alternator, Main Winch with jib and boom arrangement on the top of the mast. | |
| Suitable Mud Pump | 10”x7½”. Driven by either a separate engine or with Hydraulic Motor. | |
| Air Compressor | 1200cfm, 330psi. or 1500cfm, 400psi. |
Note:
- In view of continuous R&D and product improvement programme all specification; features etc. are subjected to amendments without prior notice.
- BEAVER drilling rigs can be supplied in custom-built models in various configurations and Mounting features to suit all special requirements.
