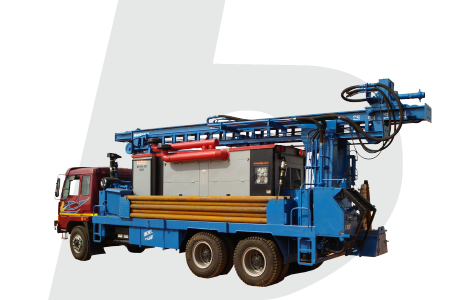

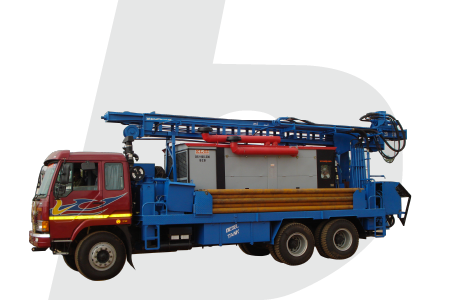

BEAVER 1500 Model, Truck Mounted Hydraulically Operated Water Well Drilling Rig can capable of drilling from 6” to 8” Dia. Bore Holes in different formations such as hard rock by DTH method, Unconsolidated / alluvial formations using water / foam flush by Rotary method & Unconsolidated / Gravel / Boundary Formations using ODEX tools up to a depth of 450 Meters (1500 Ft.)
Under favorable Drilling Conditions. The hydraulic pumps shall be powered by either same truck engine through PTO or by a separate diesel drive deck engine. It can be mounted on single truck version or two truck version.
S.No | Product | Description |
---|---|---|
Capacity of Drilling | 6” to 8” Drilling to a depth of 450 mtrs. (1500 feet) | |
Prime mover of the hydraulic pumps | Truck Engine / Deck Engine of suitable capacity | |
Hydraulic Pumps used | Radial Piston Pumps & Gear Pump | |
Maximum operating pressure | 230 Bar | |
Hydraulic oil tank capacity | 800 Ltrs. | |
Mast Construction | Channel / Box Type Structure | |
Mast | Suitable to handle 20ft. pipes | |
Centralizer opening | 14” | |
Pull up force | 17900kg | |
Pull-down Force | 10600 Kgs | |
Pull-up Speed | 35 Mtrs/min | |
Max. Torque in Series Circuit | 600 Kg-m @ 0-120 rpm | |
Max. Torque in Parallel Circuit | 1200 Kg-m @ 0-60 rpm | |
Hydraulic Jacks (Stabilizers) | 4 Nos. of Box Type Ø125x70x610 Stroke | |
Break-out wrench (to open the drill joints) | Ø125x350 Stroke | |
Water Injection Pump | 50 LPM @ 40 Bar | |
Airline Lubricator capacity | 30 Ltrs. | |
Max. Working pressure of the Lubricator | 350 PSI | |
Auxiliary Winch | 2000 Kgs | |
Accessories / Optional attachments | Welding Alternator, Main Winch with jib and boom arrangement on the top of the mast. | |
Air Compressor | 1100cfm, 300psi or 1200cfm, 330psi |
