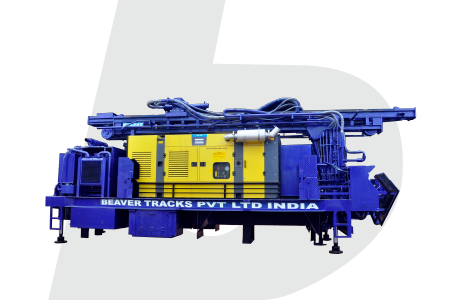

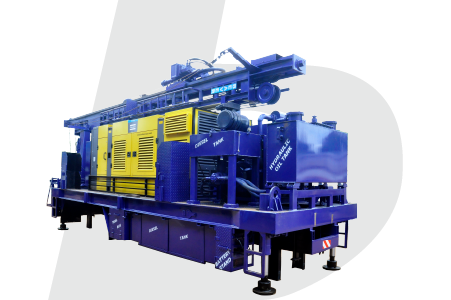

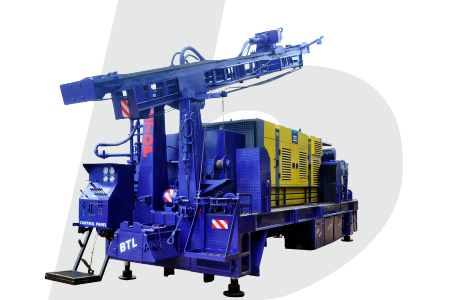

BEAVER 1500 Skid Mounted Rig
BEAVER 1500 SkID Mounted water well drilling rig is a skid-mounted top drive DTH cum rotary drill rig capable of drilling medium to hard rock by DTH method and unconsolidated / alluvial formations using air or water flush by rotary method up to a depth of 1500 feet under favorable drilling conditions.
TECHNICAL SPECIFICATIONS
| S.No | Product | Description |
|---|---|---|
| Capacity : Drilling Capacity | Hole Diameter Ø 6” to Ø 8”, Max Depth 1500 feet | |
| Type of Drilling | DTH Cum Rotary | |
| Prime Mover | Deck Engine | |
| Hydraulic Pumps | Piston Type | |
| Maximum Operating Pressure | 270 Bars | |
| Hydraulic Oil Tank Capacity | 600 Lts. | |
| Mast | Suitable to handle 10 ft or 20 ft drill rods | |
| Mast Construction | Channel Structure | |
| Centralizer Opening | 300 mm | |
| Pull Up Force | 13,800 Kg | |
| Pull Down Force | 6,700 Kg | |
| Pull Up Speed | 63 Mts / Min | |
| Rotation Speed | 0 – 100 RPM | |
| Maximum Torque | 324 Kg Mts | |
| Hydraulic Jacks | 4 Nos. of 140 × 100 × 610 mm Stroke | |
| Water Injection Pump | 80 LPM @ 40 Bar | |
| Break Out Winch | BOW Ø100 mm × 300 mm Stroke | |
| Centrifugal Mud Pump | Hydraulically driven centrifugal mud pump for rotary drilling | |
| Recommended Air Compressor |
Atlas Copco / ELGI / Doosan 1100 CFM / 300 PSI 1200 CFM / 330 PSI |
