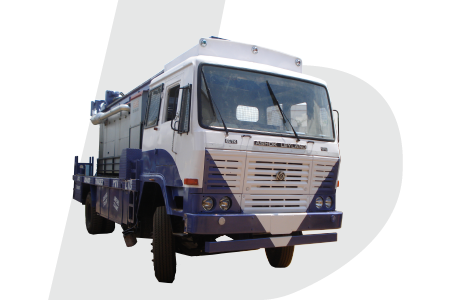

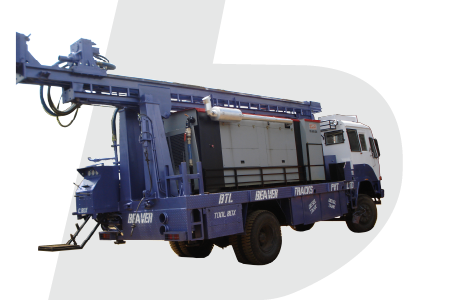

BEAVER 1000 DTH Drilling Rig Model, Truck Mounted top drive DTH drill rig capable of drilling in different formations such as medium to hard rock by DTH method, up to a depth of 1000 feet. Under favorable drilling condition. Detailed specification as follows.
TECHNICAL SPECIFICATIONS
| S.No | Product | Description |
|---|---|---|
| Capacity : Drilling Capacity | Hole Diameter 6” Max. Depth 1000 feet’s @ Dia 6” | |
| Type Of Drilling | DTH | |
| Prime Mover | Truck Engine | |
| Hydraulic Pumps | Piston Pumps | |
| Maximum operating pressure | 230 Bar | |
| Hydraulic oil tank capacity | 600 lts. | |
| Mast | Suitable to handle 20 feet. drill rods | |
| Mast construction | Channel Structure | |
| Centralizer opening | 270 mm | |
| Pull Up Force | 9,400 Kg | |
| Pull Down Force | 5,500 Kg | |
| Pull Up Speed | 65 Mts/ Min | |
| Rotaion Speed | 0 to 90 RPM | |
| Maximum Torque | 324 Kg mts | |
| Hydraulic jacks | 4 Nos. of 125X70X610 mm Stroke Jacks | |
| Water Injection Pump | 80 LPM @ 40 Bar | |
| Rod Changer | Manually operated single Rod changer | |
| Recommended Air Compressor* | Atlas Copco / ELGI / Doosan Compressor capacity 1100 CFM / 300 PSI 1200 CFM / 330 PSI |
